PRODUCT DESCRIPTION:
MC-DUR 230 is a 4-component, self-leveling, anti-slip, matte-finish polyurethane floor coating. The product has long-term chemical resistance at high temperatures, good resistance to thermal shock and abrasion. In addition, the product can be used as a direct coating on old or worn polyurethane floors.
PRODUCT PROPERTIES:
- Excellent chemical resistance.
- High temperature resistance up to 80°C.
- Resists bacterial growth; fungi, mold and mildew.
- High-density systems with maximum wear, abrasion and impact resistance.
- Maintains a smooth, hard and durable surface over time.
- Creates a seamless finish, making cleaning quick and easy.
- User-friendly, no solvent odour during installation.
- One of the fastest “turnaround time” polymer modified product which reduces cost.
AREAS OF APPLICATION: Wide range of applications, including:
- Floors of seafood factories, food factories, breweries, beverage factories, etc.
- Floors of kitchen areas, specialized cleaning areas, areas requiring high chemical resistance, chemical warehouses.
- Heat shock resistant floors for cold storage areas, freezers, etc.
- Floor areas requiring high mechanical strength and other stability.
PRODUCT CHARACTERISTICS:
| Color | Red; Green; Blue; Dark grey; Light grey; Yellow. |
| Storage | Unopened in dry conditions between 10°C – 32°C. |
| Shelf Life | Component A, B and D: 12 months. Component C: 8 months. |

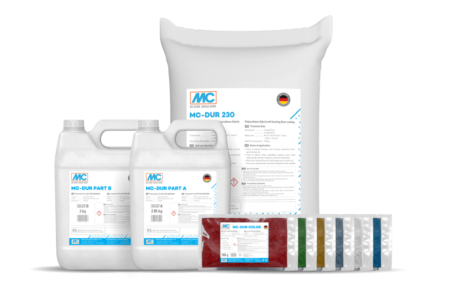

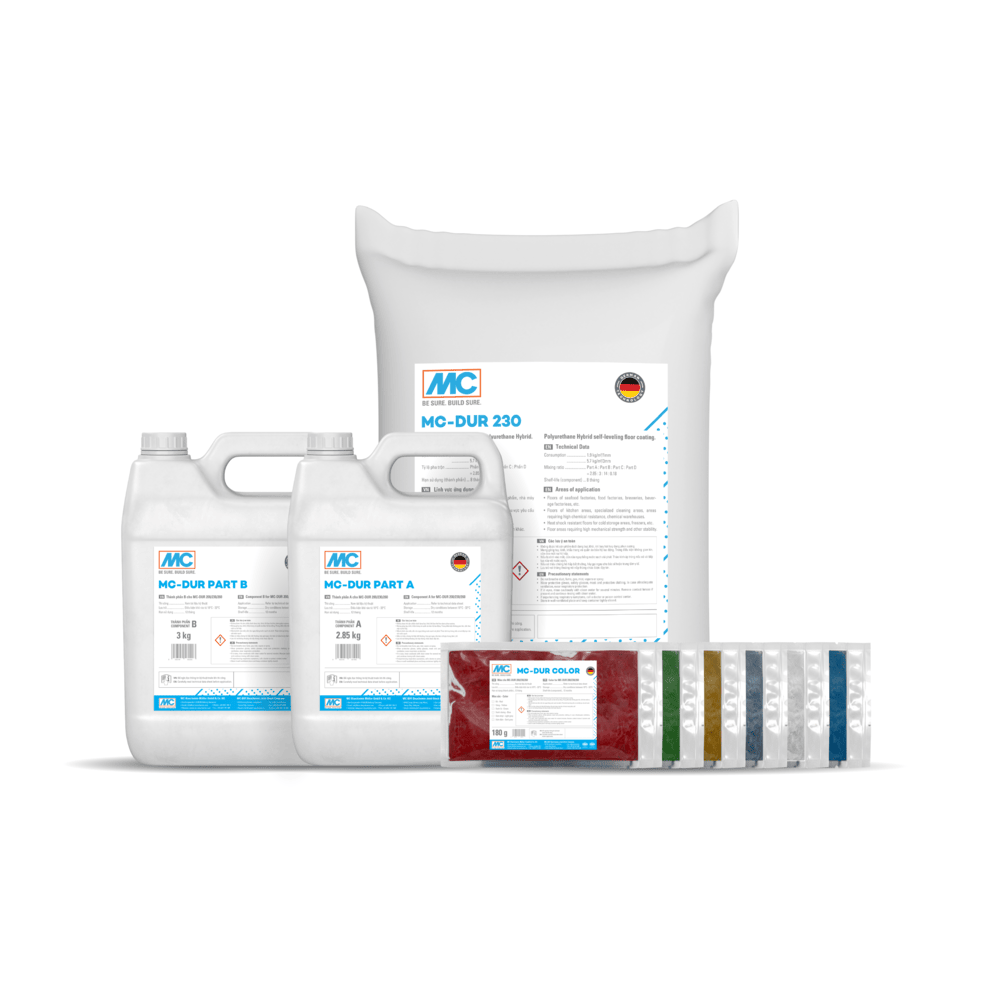

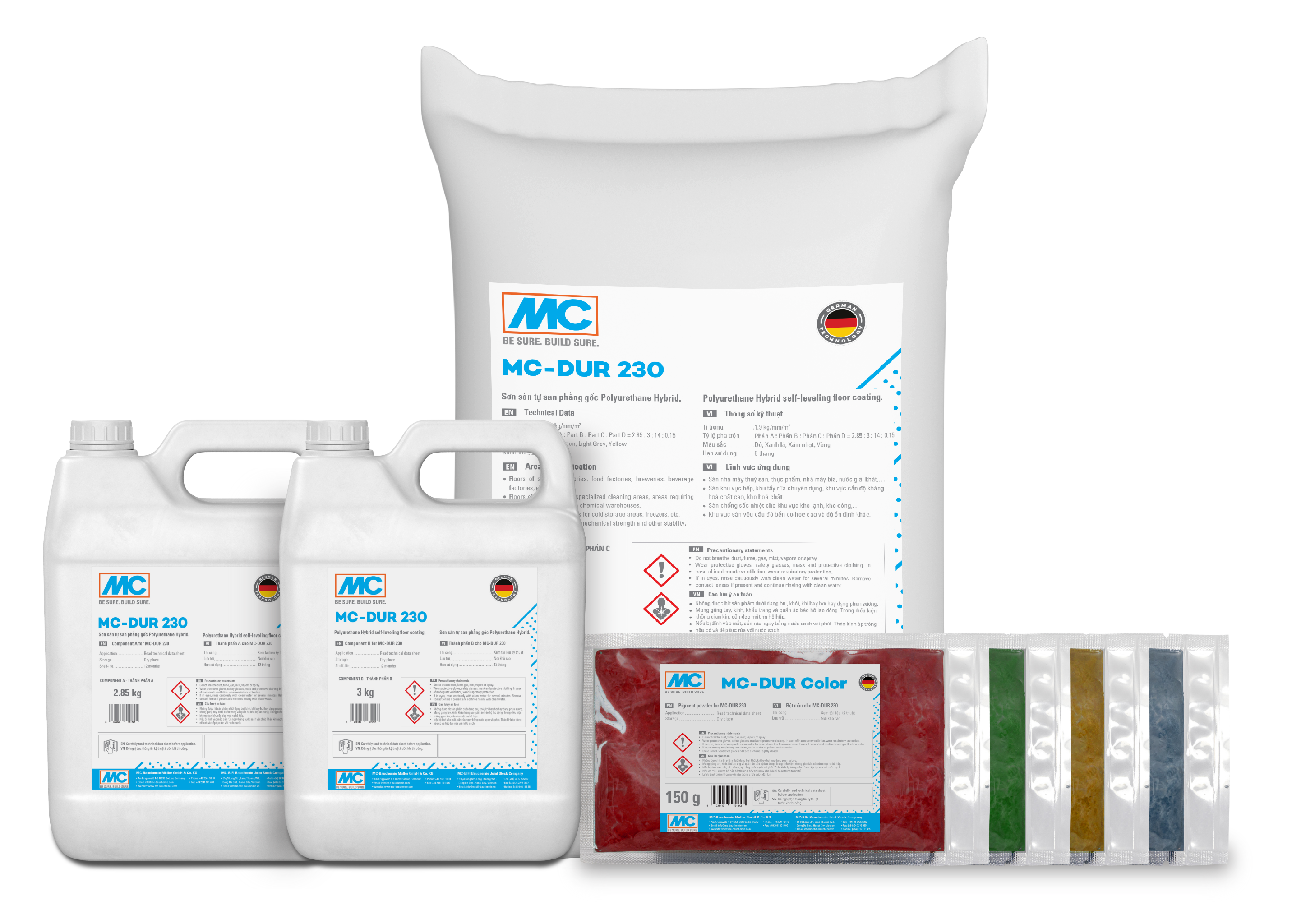

| Packaging | Component A: 2.85 kg canister Component B: 3 kg canister Component C: 14 kg bag Component D: 0.18 kg bag |
- TECHNICAL DATA:
| Characteristic | Unit | Value | Comment |
| No. of Components | 4 | ||
| Shore D hardness | 80 – 85 | ASTM D2240 | |
| Estimated Coverage | kg/m2/3mm
kg/m2/1mm |
5.7
1.9 |
|
| Mixing Ratio | By weight (kg) | 2.85 : 3 : 14 : 0.18 | Part A : Part B : Part C : Part D |
| Density | kg/mm/m2 | 1.9 | |
| Compressive strength | N/mm2 | 48 – 52 | ASTM C942 |
| Tensile strength | N/mm2 | 7 – 9 | ASTM D638-14 |
| Flexural strength | N/mm2 | 19 – 21 | ASTM C348 : 2002 |
| Adhesion strength to concrete | Mpa | > 2 | ASTM 7234-21 |
| Temperature resistance | oC | 80 | |
| Pot life | Minutes | 15
20 |
at 30oC
at 20°C |
APPLICATION ADVICE:
Surface requirement & preparation:
- Suitable substrates are concrete or polymer modified mortar with a minimum compressive strength of 25 N/mm² and a tensile strength of > 1.5 N/mm².
- Substrate to be coated must be clean, free from dust, oil, water, paint residues, loose constituents or any contaminants. Make use of a concrete surface planer, grit blasting, surface grinding or other mechanical means until a flat, rough profile is evident. Prepare grooves, 5mm (wide) x 5mm (deep), at all edges, column joints, doors and membrane end areas to ensure the membrane does not peel or pop.
Mixing: Shake the containers of components A and B well before use. First put component A into a clean mixing vessel and stir in component D MC-DUR Color (pigment) and stir. Then add component B and continue stirring. Use a slow speed mixer and stir the mixture for about 1 minute until a homogeneous mixture is obtained, without any streaks of color. Then add the aggregate (component C) to the pre-mixed plastic mixture and continue stirring until the mixture is homogeneous. It is necessary to use a mixer to mix the plastic components with the aggregate together. Mixing time depends on the temperature of component C. At a temperature of 18 – 22°C, mixing time can be up to 3 minutes.
Application:
- Apply MC-DUR 230 within its pot life.
- Spread the composite matrix to thickness of 3-6mm and consolidate with pin rake or notched squeegee set to the correct depth. Immediately release any trapped air by spike rolling.
Temperature: MC-DUR 230 should not be applied on material or floor temperatures below 10°C. Temperatures should not fall below 5°C in the first 24 hours after application. MC-DUR 230 is not designed for immersion.
Service temperatures:
- For 3mm floor thickness, it can withstand temperatures ranging from -5°C to +80°C.
- For 6mm floor thickness, it can withstand temperatures ranging from -25°C to +100°C.
Curing:
| 25oC @ 75% RH | 35oC @ 75% RH | |
| Foot traffic. (hr) | 10 | 8 |
| Light traffic. (hr) | 24 | 18 |
| Full traffic. (hr) | 48 | 24 |
| Full cure. (days) | 7 | 5 |
Chemical resistance: MC-DUR 230 will resist spillages of :
- Dilute and concentrated acids: hydrochloric, nitric, phosphoric and sulphuric.
- Dilute and concentrated alkalis, including sodium hydroxide to 50% concentration.
- Most dilute and concentrated organic acids.
- Fats, oil and sugar.
- Mineral oils, kerosene, gasoline and brake fluids.
- Most organic solvents.
Cleaning:
Clean all tools with Washing Thinner or other solvents before the material hardens. Small unreacted Part B in container is to be decontaminated with a 5% solution of washing soda (sodium carbonate) prior to disposal. After material has set it is virtually impossible to get off and will only wear off over time.
Maintenance:
Regular cleaning and maintenance will prolong the life of all resin floors, enhance the appearance and reduce the tendency to retain dirt.
